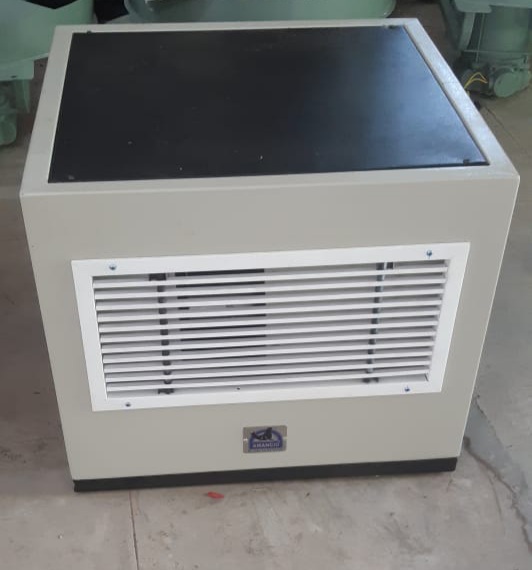

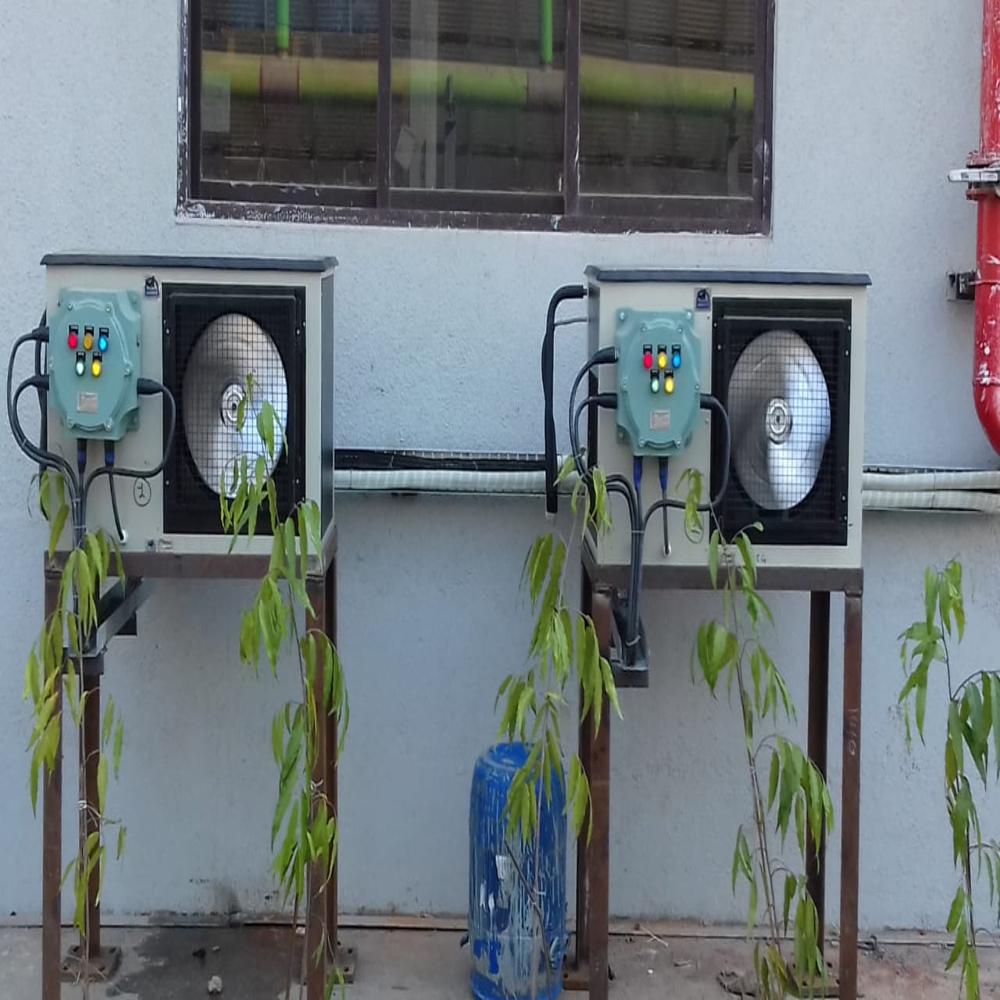

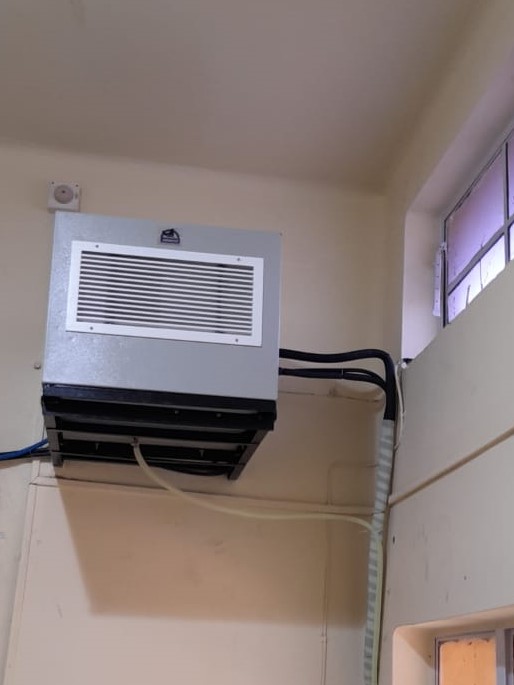

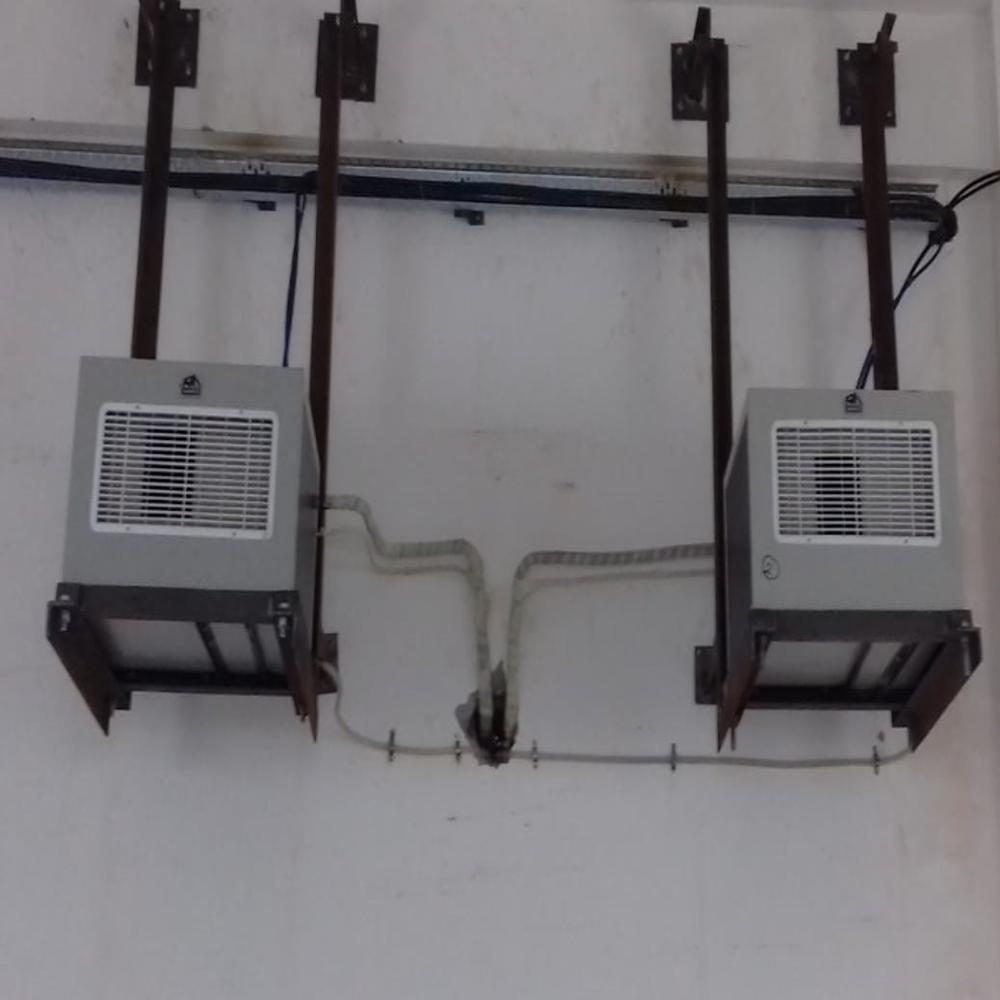

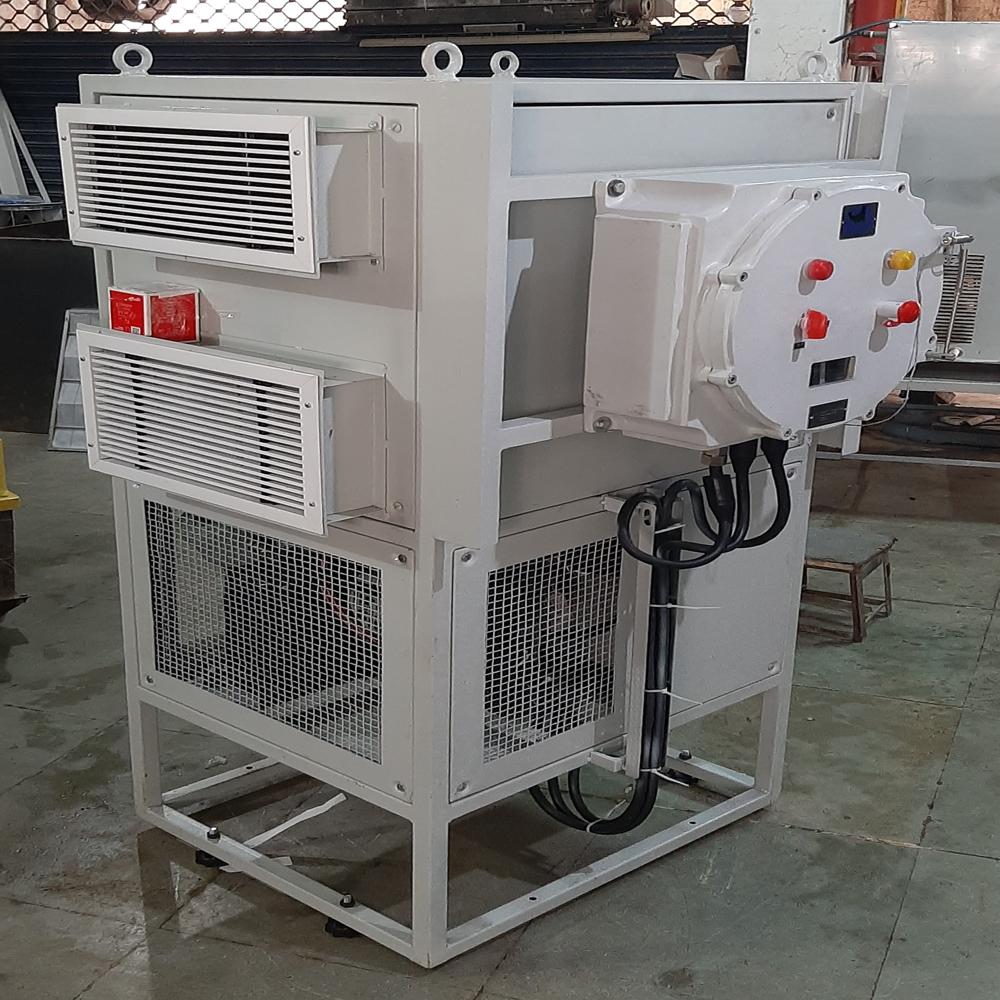

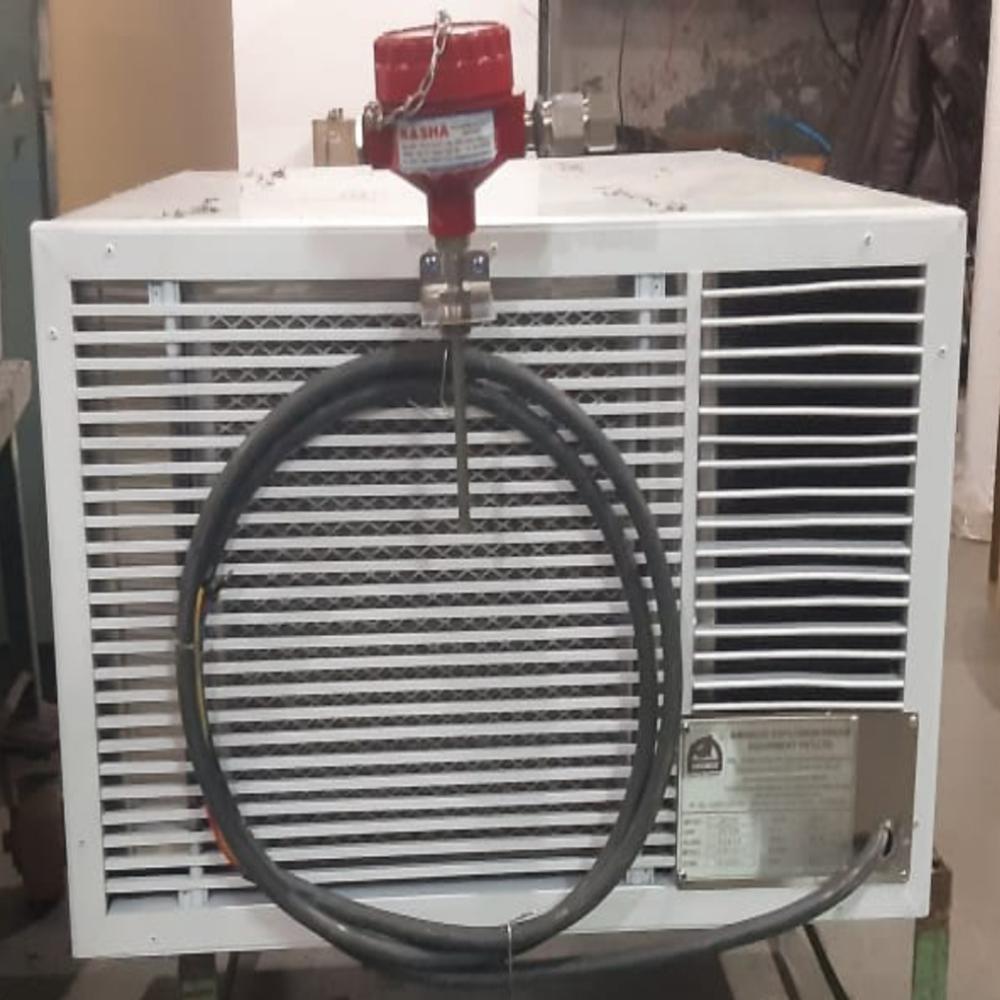

ATEX AIR CONDITIONER

ATEX AIR CONDITIONER Specification

Power Consumption
According to Model (Approx. 3-8 kW)

Temperature Control
Electronic Thermostat with ATEX approved controller

Air Flow Capacity
800 to 2500 m3/h

Cooling Capacity
From 3.5 kW to 15 kW

Outdoor Fan Input
Integrated

Dimension (L*W*H)
Custom/As per Requirement (Standard footprint possible: 1200 x 900 x 1800 mm)

Mounting
Floor Standing / Wall Mounted (on request)

Condition
New

Place of Origin
India

Compressor
Hermetically Sealed / Semi-Hermetic

Power Mode
ON/OFF / Automatic

Heating Capacity
N/A (Cooling Only)

Sensible control
Electronic

Refrigerant
R134a / R407C / R410A (CFC Free)

Power Supply
415V AC, 3 Phase, 50 Hz

Indoor Fan Input
Integrated

Filtration Grade
High Efficiency Dust Filter

Type Of Compressor
Reciprocating / Rotary / Scroll

Running Current
Approx. 6-15 Amps (Depends on capacity)

Type
Explosion Proof / ATEX Certified Air Conditioner

Cooling/Heating
Cooling

Capacity
Customizable (Standard: 1 to 5 Ton options available)

Power Source
Electric

Voltage
415 V AC, 3 Phase, 50 Hz (Can be customized)

Color
White (Standard)

Weight (kg)
Approx. 250-600 kg (Depends on model)

Working Temperature
-20C to +55C

Fan Speed
2-3 Steps

Noise Level
Low (Industrial Grade)

Energy Efficiency Rating
As per ATEX compliance

Remote Operated
Yes

Enclosure Protection
IP65 / IP66 Rated

Explosion Protection
Zone 1 & Zone 2 certified as per ATEX and IECEx

Service Accessibility
Front / Side Service Access Doors

Automatic Restart
Available

Material of Construction
M.S. Powder Coated / Stainless Steel (On Request)

Installation
Indoor / Outdoor

Control Panel
ATEX Certified, Integrated with Unit

Compressor Protection
Overload / Thermostat / Pressure Switch

Application
Hazardous Area, Oil & Gas, Petrochemical, Chemical Plants, Pharma, Defence etc.

Ambient Design
Tropicalized for harsh climate

Display
Digital/LED Display (Optional)

Gas Group Compatibility
IIA, IIB, IIC (as required)

ATEX AIR CONDITIONER Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

ATEX AIR CONDITIONER About

An ATEX air conditioner is a specialized cooling system certified for use in hazardous areas where flammable gases, vapours, or dusts are present. Unlike standard units, they are specifically engineered to eliminate all potential ignition sourcessuch as electrical sparks, hot surfaces, and static electricityto prevent catastrophic explosions in industrial settings like oil rigs, chemical plants, and refineries.

Comprehensive Explosion Protection

Designed for the highest safety in hazardous areas, this air conditioner is certified for Zone 1 and Zone 2 atmospheres according to both ATEX and IECEx standards. Its construction ensures optimal protection against dust and moisture ingress, with enclosure protection of IP65/IP66, making it particularly suitable for industries such as oil & gas, petrochemicals, and chemicals.

Flexible Installation and Configuration

The system accommodates both indoor and outdoor setups, offering flexibility in integration. Available in floor-standing or wall-mounted configurations on request, it features front and side service doors for easy maintenance. Customizable cooling capacities and robust cooling performance make it suitable for varied climate conditions and operational needs.

Advanced Control and Monitoring

Outfitted with an ATEX-certified control panel and optional digital or LED display, the air conditioner provides precise temperature management and remote operation capability. The electronic thermostat, coupled with safety features like overload, thermostat, and pressure switch compressor protection, ensures seamless, efficient, and safe operation in explosive environments.

FAQ's of ATEX AIR CONDITIONER:

Q: How is the ATEX Air Conditioner protected against explosions?

A: The ATEX Air Conditioner is certified for use in hazardous environments, specifically Zones 1 and 2, as per ATEX and IECEx standards. It features explosion-proof construction, an ATEX-certified integrated control panel, and rigorous safety mechanisms to prevent ignition in flammable gas atmospheres.

Q: What installation options are available for this unit?

A: This air conditioner is suitable for both indoor and outdoor installations. It can be floor-standing by default or wall-mounted upon request, allowing for flexibility based on the spatial and operational needs of your facility.

Q: Where is the ATEX Air Conditioner most commonly used?

A: The unit is designed for hazardous locations, including oil & gas facilities, petrochemical and chemical plants, pharmaceutical manufacturing, defence environments, and any setting requiring explosion protection and reliable cooling performance.

Q: What benefits does the digital/LED display option provide?

A: The optional digital or LED display enables real-time monitoring of operating parameters, making it easier for users to manage and adjust climate control settings accurately, thereby enhancing operational oversight and safety.

Q: How does the air conditioner handle harsh climatic conditions?

A: Engineered with a tropicalized ambient design, this unit can confidently operate in extreme temperatures, from -20C to +55C, ensuring stable performance even in challenging weather or industrial environments.

Q: What is the process for maintaining or servicing the unit?

A: Maintenance is streamlined using front and side service access doors. These allow technicians to efficiently service internal components without major disassembly, ensuring safety and minimizing downtime.

Q: What filtration capabilities does this air conditioner offer?

A: Equipped with a high-efficiency dust filter, the system removes particulates from the air, ensuring clean airflow and optimal performance, which is crucial for maintaining safety and air quality in hazardous industrial environments.
